TOP-SIM04
Molex Push - push type R/A SMD sim card holder 6 pin for GSM GPRS module 0475531001
Introduction:
Brand: Molex
Molex part number:0475531001
TOP part number: TOP-SIM04
1.27mm Pitch SIM Card Holder with 2 Detect Pins, 6 Circuits,
Push-Push Style, Housing
Height 1.80mm, with Pegs, Lead-Free
Specification:
|
Packaging |
Tape & Reel (TR) |
|
Standard Package |
600 paces |
|
Card Type |
SIM Card |
|
Number of Positions |
8 (6 + 2) |
|
Connector Type |
Connector |
|
Insertion, Removal Method |
Push In, Push Out |
|
Ejector Side |
- |
|
Mounting Type |
Surface Mount, Right Angle |
|
Features |
Switch |
|
Height Above Board |
0.071" (1.80mm) |
|
Mounting Feature |
Normal, Standard - Top |
|
Contact Finish |
Gold |
|
Contact Finish Thickness |
30µin (0.76µm) |
Description::
1. Finish
A. Terminal:
50~200u nickel under plated
30u MIN gold plating on contact area
3u MIN gold flash on soldering area
B. Shell
50~200u nickel under plated
3u MIN gold flash on soldering area
C. Detect pin
50~200u nickel under plated
3u MIN gold plating on contact area
3u MIN gold flash on soldering area
D. Housing: G/F 45% UL 94V-0 , Black
E. Heart cam: G/F 30% UL 94V-0, Black
2. Solder tail co planarity: 0.08mm MAX.
3. TERMINAL TIP MUST SINK INTO HOUSING
4. PRODUCT COMPLIANT TO ROHS directive 2002/95/EC and ELV directive 2000/53/EC
5. Detect switch: insert card-on (normal-open)
6. Spring rise up during push – push period
Quality control :
•EU RoHS
Compliance Status. EU RoHS status is declared per Directive 2011/65/EU
and its subsequent amendments. Homogeneous materials of parts that are compliant to this
legislation have less than 0.1% by weight each of lead, mercury, PBB,
and PBDE, and 0.01% by weight of cadmium. In situations where an exemption applies, the
preceding limits, corresponding to the exempted substance(s), may be higher.
Application:
l GSM APPLICATIONS
l MOBILE PHONES
l PORTABLE DEVICES
l PERSONAL SMART CARD DEVICES
l Industrial RF devices
l PCMCIA/CF wireless cards

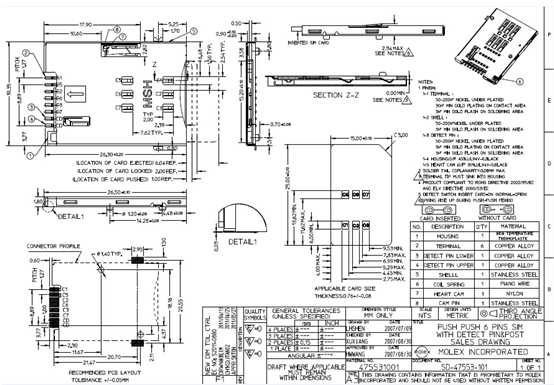

Drawing:
