SIM7100A

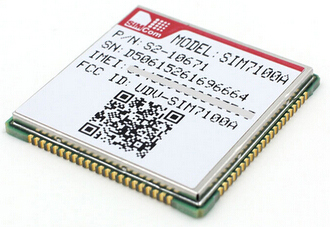

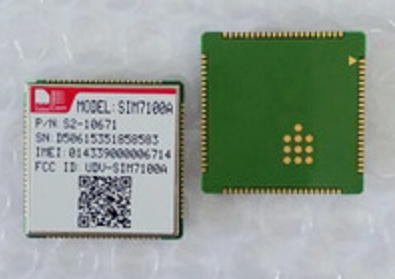

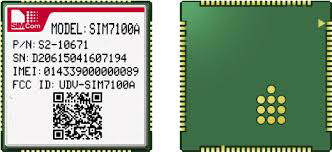

4G LTE module SIM7100A
SIMCom presents an ultra compact and reliable wireless module SIM7100A which is based on Qualcomm MDM9215 multiple-mode LTE platform. SIM7100A is a complete multi-band LTE /WCDMA/GNSS module designed with very powerful processors integrating application core:Cortex™ A5(550MHz),three QDSP6 cores (Up to 500Mhz), allowing customer to benefit from small dimensions and cost-effective product solutions.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.
General features
• Quad-Band LTE-FDD B2/B4/B5/B17
• Dual-Band UMTS/HSDPA/HSPA+ B2/B5
• Control Via AT Commands or Gobi API
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40℃to +85℃
• Dimension: 30*30*2.9mm
• Weight: 5.8g
• LTE-FDD/Rel-9 Cat3
• HSPA+ DC-HSPA+,Rel-10 HSPA+
• GNSS gpsOne Gen 8B;standalone;assisted,XTRA
Specifications for Data transfer
• LTE
- Uplink up to 50Mbps,
- Downlink up to 100Mbps
• HSPA+
- Uplink up to 5.76 Mbps,
- Downlink up to 42 Mbps
• UMTS
- Uplink/Downlink up to 384Kbps
• CSD
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
Other features
• USB Driver for Microsoft Windows 2000/XP/Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux /Android
• RIL supporting for Android/Windows CE/Mobile
• Automatic installation
• Linux API SDK
• Firmware update via USB
• TCP/IP/IPV4/V6 Multi-PDP,MT PDP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS
• DTMF
• Gobi SDK to the Win7/Win8/Linux
• MBIM to Win8
• Source code of the PC manager of the device for reference
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Constant current sink
• GPIO
• ADC
• PCM *
• SDIO
Certifications
• FCC
• PTCRB
• IC
• AT&T
• ROHS (on going)
• REACH (on going)
• Rogers (on going)
