EM7355
EM7355-North America
Wireless Communication 4G LTE EVDO Module MC7355 with MDM 9615 Qualcomm chipset
Specifications
Sierra Wireless / AirPrim

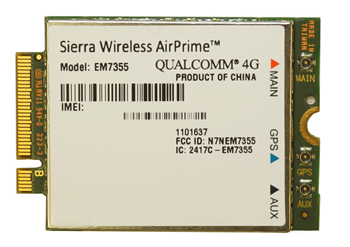

EM7355(North America) LTE 4G module
MC7355 MC7354 MC7304 MC7305 available !
EM7355 is a second generation 4G-LTE module with an integrated GPS + Glonass receiver primarily for North America / AT&T, Verizon, Sprint. Fall back to 3G HSPA+/DC-HSPA+, CDMA EVDO Rev A and 2G GSM/GPRS/EDGE, CDMA 1xRTT.
Description:
|
odel No |
EM7355 |
|
Category |
4G Module |
|
Manufacturer |
Sierra Wireless |
|
Chipset |
MDM 9615 Qualcomm |
|
|
|
|
Form Factor |
PCIe M.2 |
|
Pins |
52-pin |
|
Dimensions |
51 x 30 x 2.75 mm |
|
Technologies |
UMTS,HSDPA,HSPA+,LTE,EVDO Rev A,1xRTT, GSM,GPRS(Class 12),EDGE |
|
Dload Speed |
100 Mbps |
|
Upload Speed |
50 Mbps |
|
Freq bands |
|
|
GPRS/EDGE |
850/900/1800/1900 MHz |
|
WCDMA |
2100/1900/800/850/1700 MHz |
|
LTE |
2100/1900/700(B17)/850/700(B13) MHz |
|
EVDO |
800/1900 MHz |
|
RTT |
800/1900 MHz |
|
Temperature |
-25 º C to 60 º C |
|
Interfaces |
USB |
|
Voice Support |
None |
|
GPS Support |
Yes |
Supported frequency bands:
- 4G-LTE 700/700/850/AWS1700/1900/2100
- 3G 800/850/900/AWS1700/1900/2100
- 2G 850/900/1800/1900
- CDMA EVDO 800/1700/1900
- CDMA 1xRTT 800/1900
Application:
Multi operator support through host-based image switching.
Ideal for M2M and mobile computing solutions, AirPrime® EM embedded modules deliver high speed connectivity on 4G-LTE networks. Based on the M.2 PCI Express Card standard with a USB interface, the EM Series modules offer an easy upgrade path to new network technologies and global access to high speed networks. The M.2 formfactor is also known as NGFF (New Generation Form Factor).
Module Selection Guide
Online AT Tester
Device Certification Guide
M2M Carrier Guide
Sierra Wireless EM7355 is a 4G Module. This module supports UMTS,HSDPA,HSPA+,LTE,EVDO
Rev A,1xRTT,GSM,GPRS(Class 12),EDGE technologies. EM7355 certifications are FCC, PTCRB, CDG, GCF, NCC (Taiwan) .The integration support for this module can be found support. The frequency bands are listed above. Developer support can be found developer support. Specification can be found specs. Carrier approvals for this module are listed above.
