Product - TOP-GSM GPS01

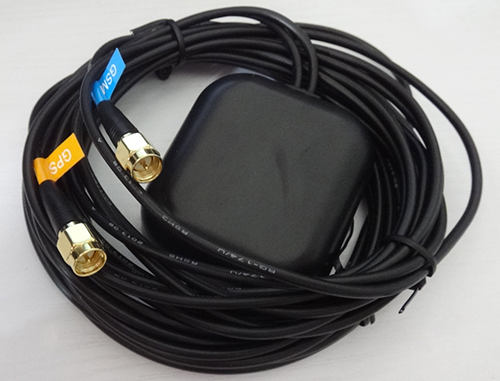

TOP-GSM GPS01

TOP-GSM GPS01

GSM+GPS combo Antenna



TOP-GSM/GPS01



SPECIFICATION

Size: 59*52*14MM

Dieletric Antenna

Center Frequency 1575.42 MHz3 MHz

V.S.W.R 1.5 : 1

Band Width 5 MHz

Impendence 50 ohm

Polarization Type RHCP

LNA / Filter

LNA Gain(Without cable) 30 dB Typical

Noise Figure 1.5 dB

DC Voltage 2.2~5 V

DC Current 5~15 mA

GSM Part

Frequency

824~894MHz/1710~1990MHz880~960MHz/1710~1990MHzV.S.W.R 2.0:1

Impendence 50 ohm

Typical Gain 2dBi

Cable RG174 3m/5m or others

Connector SMA/SMB/MCX or others

Working Temp -40~+85

Humidity 55%~75%RH

Waterproof IP67

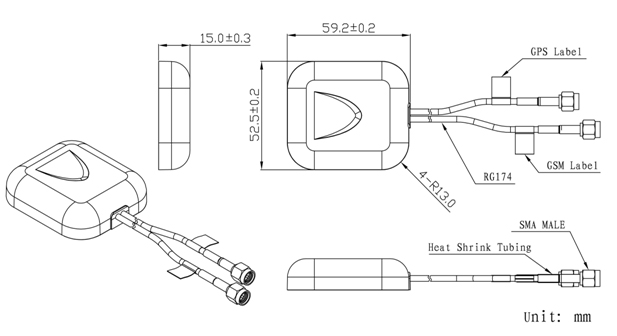

DIMENSIONS


SPECIFICATIONS

Item

Specifications

GPS Antenna

Dielectric

Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

2dBic(Zenith)

V.S.W.R

<1.5

Impendance

50Ω

Axial Ratio

3dB(max)

LNA

Gain

28±2dB

Noise Figure

<1.5

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

V.S.W.R

<2.0

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

GSM Antenna

Frequency Range

824~960MHz/1710~2170MHz

V.S.W.R(min)

<2.5

Polarization

Linear

Gain

2dBi

Impendance

50Ω

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Magnet/Adhesive

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP65~IP67

Vibration

10 to 55Hzwith 1.5mmamplitude2hours

EnvironmentallyFriendly

ROHS Compliant
