SIM5320
SIMCOM wireless communication 3G module SIM5320 with 30*30*2.9mm small size
Introduction:
The SIM5320 series is Dual-Band HSDPA/WCDMA and Quad-Band
GSM/GPRS/EDGE module in a SMT package which supports HSDPA up to 3.6Mbps for
downlink data transfer.
It has strong extension capability with rich
interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant
application capability like embedded LUA script,
TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much
flexibility and ease of integration for customer’s application. It is ideal for
a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care
etc.
General features
|
• SIM5320A： |
- Dual-Band UMTS/HSDPA 850/1900MHz |
|
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
|
|
• SIM5320(J)E： |
- Dual-Band UMTS/HSDPA 900/2100MHz |
|
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
|
|
• SIM5320J： |
- Dual-Band UMTS/HSDPA 850(800)/2100MHz |
|
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
|
|
• GPRS multi-slot |
class 12 |
|
• EDGE multi-slot |
class 12 |
|
• Output power |
- UMTS 850/1900: 0.25W |
|
|
- UMTS 900/2100: 0.25W |
|
|
- GSM850/GSM900: 2W |
|
|
- DCS1800/PCS1900: 1W |
|
• Control Via AT Commands |
|
|
• Supply voltage range: |
3.4~ 4.2V |
|
• Operation temperature: |
-30℃to +80℃ |
|
• Extended operation temperature: |
-40℃to +85℃ |
|
• Dimension: |
30 * 30 * 2.9 mm |
|
• Weight: |
5.6g |
Support embedded Script Language
• LUA Script Language
• Embedded AT *
Specifications
for GPS/Location
• CELL assistant Location (No GPS)
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
• QUALCOMM XTRA GPS mode
Specifications
for Data transfer
• HSDPA
- Max. 3.6Mbps(DL)
• WCDMA
- Max. 384Kbps(DL),
Max.384Kbps(UL)
• EDGE Class:
- Max. 236.8Kbps(DL),
Max.118Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL),
Max.42.8Kbps(UL)
• CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
• Multi-PDP connect application
Specifications
for SMS
• Point to point MO and MT
• Text and PDU mode

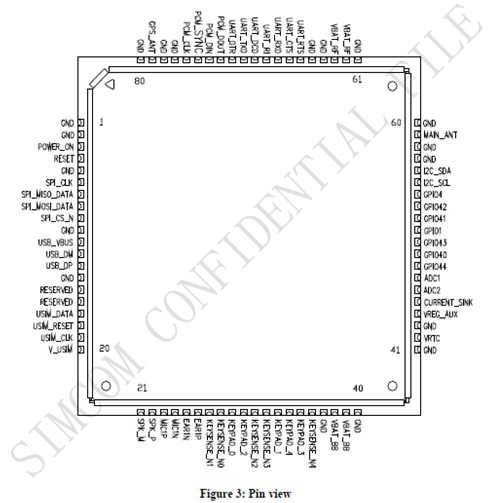

Module Drawing:
