UC20 LCC
QUECTEL Wireless communication 3G UMTS HSPA+ module UC20 with LCC package
There are LCC and mini PCIE 2 type
E(for Europe)
A(for America)
G(for Global)
Description:
STOCK Quectel UC20-E UC20-A UC20-G available .
Brand-New Originals with Factory boxes;
Best price for wholesale and stock supply .
UC20 is the latest Quectel UMTS/ HSPA+ module offering a maximum data rate of 14.4 Mbps downlink and 5.76 Mbps uplink. UC20 is designed to provide customers with global network coverage on the connectivity of HSPA+/ WCDMA. It can also be fully backward compatible to existing EDGE and GSM/ GPRS networks through multi-band combination of quad band WCDMA and quad band GSM.
General Features:
|
General Features |
||
|
Packing |
112-pin LCC |
Notice |
|

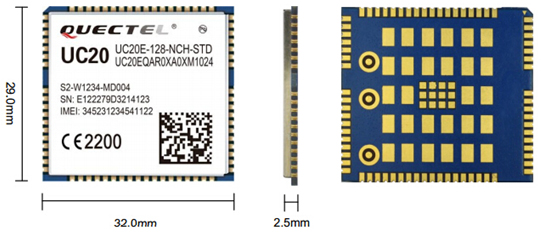

Dimensions |
32*29*2.5mm |
|
|
3G |
UMTS/HSDPA |
|
|
Frequency Range(MHz) |
E(for Europe) |
|
|
A(for America) |
||
|
800/850/900/1900/2100@UMTS |
G(for Global) |
|
|
Weight(approx.) |
4.9g |
|
|
Temperature Range |
_40°C to +85°C |
|
|
Data Transmission |
||
HSPA data rate(Mbps)
14.4(DL)/5.76(UL)
UMTS data rate(Kbps)
384(DL)/384(UL)
GPRS data rate(Kbps)
85.6(DL)/85.6(UL)
EDGE data rate(Kbps)
236.8(DL)
SMS
Yes
CSD
Yes
Protocols
TCP/UDP/PPP/MMS/FTP/SMTP/SMTPS/HTTP/HTTPS/PING/SSL
Interfaces
Audio
Digital Audio through PCM Interface
(Optional)
USB
2.0 High Speed
UART
1×Full Function, 1×Debug
USIM
1.8V/3V
Netlight
1×NET_MODE, 1×NET_STATUS
ADC
× 2, 15bits
RTC Backup
Real Time Clock
SD
RESET
PWRKEY
Antenna
Pads for Primary, Rx Diversity and GNSS
Status
Indication for Power On an
consumption
and mechanical intensity. Its advanced LCC package allows fully automated
manufacturing for high-volume applications.
Application:
A
rich set of internet protocols, industry-standard interfaces (USB/UART/ PCM/
ADC/ Antenna-Diversity) and abundant functions (USB drivers for Windows XP,
Windows Vista, Windows 7, Windows CE, Linux, Android/eCall) extend the
applicability of the module to a wide range of M2M applications such as
automotive, metering, tracking systems, security solutions, routers, wireless
POS, mobile
