UC15 LCC
QUECTEL wireless communication 3G module UC15 with LCCpackage
There are LCC and mini PCIE 2 package
E(for Europe)
A(for America)
G(for Global)
Description:
UC15 is a cost effective UMTS/HSDPA module
featuring a maximum data rate of 3.6Mbps downlink and 384Kbps uplink. Designed
to be compatible with Quectel GSM/GPRS M10 module in the compact and unified
form factor, it provides a flexible and scalable platform for migrating from
GSM/GPRS/EDGE to UMTS/HSDPA. This enables integrators and developers to design
their applications once and take advantage of true worldwide coverage and
service flexibility afforded by the combination of the two most prevalent
cellular technologies worldwide.
Its advanced LCC package allows fully automated
manufacturing for high volume applications and copper-surfaced bottom design
optimizes heat dissipation. The tiny profile in cost optimized SMT form factor
and highly integration level enable integrators and developers to easily design
their applications and truly benefit from the module|#@@#|s small size, low power
consumption and mechanical intensity.
Specification:
|
Packing |
108-pin LCC |
Notice |
|
Dimensioins |
29*29*2.5mm |
|
|
3G |
UMTS/HSDPA |
|
|
Frequency Range(MHz) |
E(for Europe) |
|
|
A(for America) |
||
|
Weight(approx.) |
4.3g |
|
|
Temperature Range |
_40°C to +85°C |
Data Transmission
HSPA data rate(Mbps)
3.6(DL)
UMTS data rate(Kbps)
384(DL)/384(UL)
GPRS data rate(Kbps)
85.6(DL)/85.6(UL)
EDGE data rate(Kbps)
236.8(DL)
SMS
Yes
CSD
Yes
Protocols
TCP/UDP/PPP/MMS/FTP/SMTP/SMTPS/HTTP/HTTPS/PING/SSL
Application:
A rich set of Internet protocols,
industry-standard interfaces (USB/UART/ADC/Status Indicator/PCM ) and abundant
functionalities (USB drivers for Windows XP, Windows Vista, Windows 7, Windows
8, Windows CE, Linux, Android/eCall) extend the applicability of the module to
a wide range of M2M applications such as automotive, metering, security, CPE
and wireless POS.

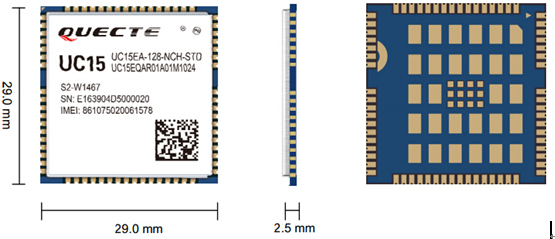

Module display:
Key benefits
Worldwide UMTS/HSDPA and GSM/GPRS/EDGE
coverage
Minimal SMT form factor ideal for small
end products with tight space
High-quality data and image transmission
even in hazard conditions and dark environment
Fast time-to-market:
Reference designs,
evaluation tools and timely technical support minimize design-in time and
development efforts
Robust mounting and interfaces
