MU736
HUAWEI Sierra wireless communication 3G module MU736 HSPA+ M.2 Module
Introduction:
HUAWEI MU736 is a HSPA+ module with NGFF interface, supporting Penta-band (B1/B2/B4/B5/B8) for worldwide network coverage, low power consumption, GPS, and global carrier certifications, enabling easier and more flexible design and integration into end devices. HUAWEI MU736 is world|#@@#|s first M.2 Module for ultrabook, tablet and notebook application. In addition, the HUAWEI MU736 supports all NGFF features to optimize performance, power consumption, and usability.
Key Feature:
DL 21Mbps/UL 5.76Mbps
* Intel Shark Bay FFRD
* Low power consumption
* GPS Standalone, A-GPS
* M.2 Package
* Ultrabook feature support
* OS: Windows/ Window 8 / Android 4.0
Specification:
|
Form Factor: |
M.2 |
|
* Penta-band UMTS/HSPA/HSPA+ |
2100/1900/AWS/900/850MHz |
|
* 2G Quad-Band GSM/GPRS/EDGE |
850/900/1800/1900MHz |
|
* Size: |
42 mm X 30 mm X 2.3 mm |
|
* Weight: |
< 6g |
|
SIM Card supply voltage: |
1.8v ~3.0v UICC(SIM/UICC/USIM) |
|
>>Supply Voltage range: |
3.3v~4.2v(3.7v is recommended) |
|
>>Temperature Range: |
Normal Operation:-10°C to +55 °C |
|
Extended Operation: |
-20°C to +70 °C |
Storage:
-40°C to +85 °C
General features
1. Penta-band WCDMA/HSPA/HSPA+2100/1900/900/850/AWS MHz
Quad-band GSM/GPRS/EDGE
1900/1800/900/850MHz
2. GPRS/EDGE: Multi-slot Class 12,Class B
3. Max transmitter power
WCDMA/HSPA/HSPA+2100/1900/900/850/AWS
MHz: +24 dBm (Power Class 3)
GSM/GPRS
900/850MHz :+33dBm(Power Class 4)
GSM/GPRS 1900/1800 MHz:+30dBm
(Power Class 1)
EDGE 850/900MHz:+27dBm (Power Class
E2)
EDGE 1800/1900MHz:+26dBm (Power Class E2)
4. Control Via AT Commands
3GPP TS 27.007 and TS 27.005
Huawei extended AT command
5. SIM Card supply voltage: 1.8v ~3.0v UICC(SIM/UICC/USIM)
6. Supply Voltage range:3.3v~4.2v(3.7v is recommended)
7. Temperature Range: Normal Operation:-10°C to +55 °C

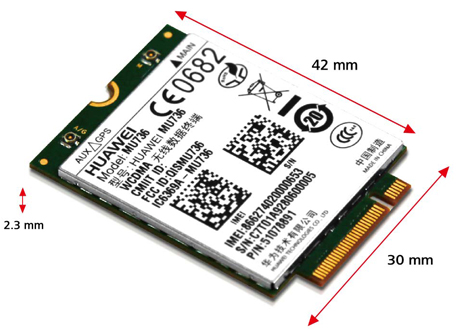

Module showing:
