MU609
HUA WEI wireless communication 3G module MU609 support WCDMA/HSDPA/GSM
There are LGA and mini PCIE 2 type package
MU609 module has two editions: GPS and No GPS.
MU609 LGA
MU609 is high-quality designed HSPA module in small size and Huawei standard LGA form factor which specially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.
Based on Huawei standard LGA technology, the MU609 module provide a smoothly path to Huawei HSPA+ or LTE high-speed modules.
MU609 supports 14.4Mbps downlink data rate, providing data and voice service under global GSM/GPRS/EDGE/WCDMA networks. The module also include enhanced features like embedded TCP/IP stack, FOTA, STK, and Huawei enhanced AT commands
MU609 mini PCIE
MU609 Mini PCIe is a variant of MU609 with standard Mini PCIe form factor. It is high-quality designed HSPA module which specially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.
MU609 Mini PCIe supports 14.4Mbps downlink data rate, providing data and voice service under global GSM/GPRS/EDGE/WCDMA networks. The module also include enhanced features like embedded TCP/IP stack, FOTA, STK, and Huawei enhanced AT commands
All Huawei modules comply with the RoHS directive and Regional certification.
Specification:
Info. |
LGA |
mini PCIE |
Form Factor |
145 pin LGA |
mini PCIE |
Size(mm) |
30x30x2.2 mm |
30.4x51x3.4 |
Weight(g)
7g
12g
Bands
HSPA+/UMTS quad-band 850/900/1900/2100 MHz
GSM/GPRS quad-band 850/900/1800/1900 MHz
Data Transfer Rate
Downlink:14.4 Mbps, Uplink: 5.76 Mbps
Interface
Antenna interface
3 Antenna connectors
1*8 UART & 1*2 UART
PCIe interface
USB 2.0 High speed
USB 2.0 High speed
PCM Voice(AT&T version can’t support)
PCM Voice(AT&T version can’t support)
JTAG
SIM Interface (1.8V/3.0V)
SIM Interface (1.8V/3.0V)
Power supply
Multiple GPIOs
Reset
Power supply
Reset
Power _ On off
Power Supply
3.3 V to 4.2 V (typical: 3.8 V)
3.0 V to 3.6 V (typical: 3.3 V)
Temp Range
Normal Operation: -20℃ to 70℃
Extended Operation: -40℃ to 85℃
Extended Operation: -30℃ to 70℃
Voice
Special Features
FOTA
FOTA
Firmware update via USB
STK
STK
GPS/Glonass
GPS
A-GPS
Operating System
Linux, Android
PCM Voice(AT&T version cannot support)
Key Benefit
MU609 is a high-speed M2M industrial grade wireless module, Huawei LGAseries package, compatible with the MU509 series, compatible withnext-generation LTE module PIN-to-pin; also has a standard Mini PCIe form,select clients more flexibility.
It provides high quality voice, SMS function, rich extension function, GPS, FOTA, Huawei has extended AT command set

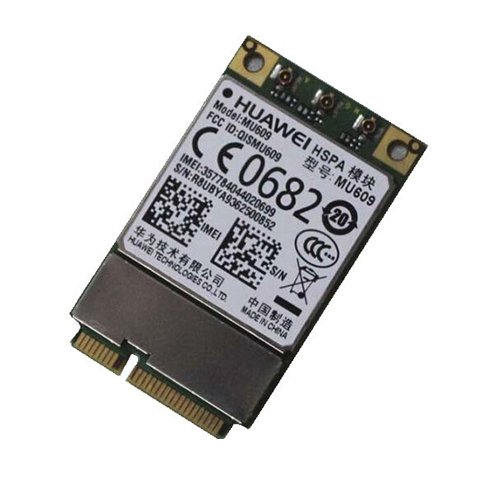

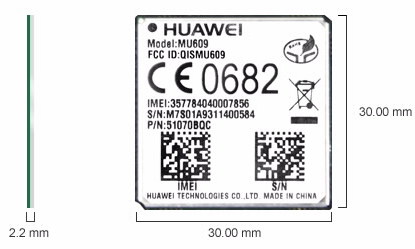

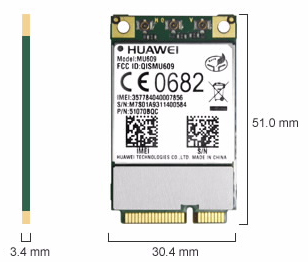

Module view:
