SIM800F

SIM800F

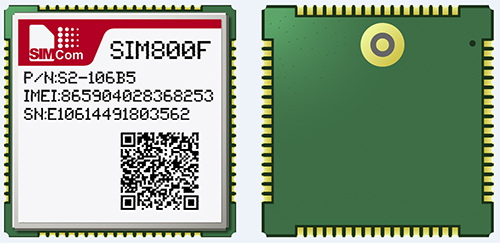

SIMCOM wireless communication GSM GPRS module SIM800F in a SMT type solution


SIM800F is compatible with SIM900.



Note:

1. For details about the difference in hardware

, please refer to “SIM800F_Hardware Design” and “

SIM900_Hardware Design ”.

2. For details about the difference in soft

ware, please refer to “SIM800 Series_AT Command

Manual ” and “SIM900_AT Command Manual”.


Module  Introduction:

SIM800F is a complete Quad-band GSM/GPRS solution in a SMT type, which can be embedded in the customer applications.

SIM800F supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 24*24*3mm, it can smoothly fit into slim and compact demands of customer design.



General features:

• Quad-band

850/900/1800/1900MHz

• GPRS

multi-slot class 12/10

• GPRS

mobile station class B

• Compliant to GSM phase 2/2+

– Class 4 (2 W @ 850/900MHz)

– Class 1 (1 W @ 1800/1900MHz)

• Dimensions:

24*24*3mm

• Weight:

3.1g

• Control via AT commands

(3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)

• Supply voltage range

3.4 ~ 4.4V

• Low power consumption


• Low power consumption

-40℃~85℃


Specifications for GPRS Data

•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD

Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode

Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•DTMF
•Jamming  Detection
•Audio Record
•SSL
•Bluetooth 3.0 (optional)


Specifications for voice
• Tricodec
–Half rate (HR)
–Full rate (FR)
–Enhanced Full rate (EFR)
• AMR
–Half rate (HR)
–Full rate (FR)
• Hands-free operation (Echo suppression)

Interfaces
68 SMT pins including
• Analog audio interface
• RTC backup
• USB interface



• Serial interface
• Interface to external SIM 3V/1.8V
• GPIO
• ADC
• PWM
• I2C
• GSM Antenna pad
• Bluetooth Antenna pad

Compatibility
• AT cellular command interface

Certifications
• ROHS
• REACH


Application:

Designed for global market, SIM800F is a quad-band GSM/GPRS module that works on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz. SIM800F features GPRS multi-slot class 10/ class 8 (optional) and supports the GPRS coding schemes CS-1, CS-2, CS-3 and CS-4.

With a tiny configuration of 24*24*3mm, SIM800F can meet almost all the space requirements in users’ applications, such as smart phone, PDA and other mobile devices.
